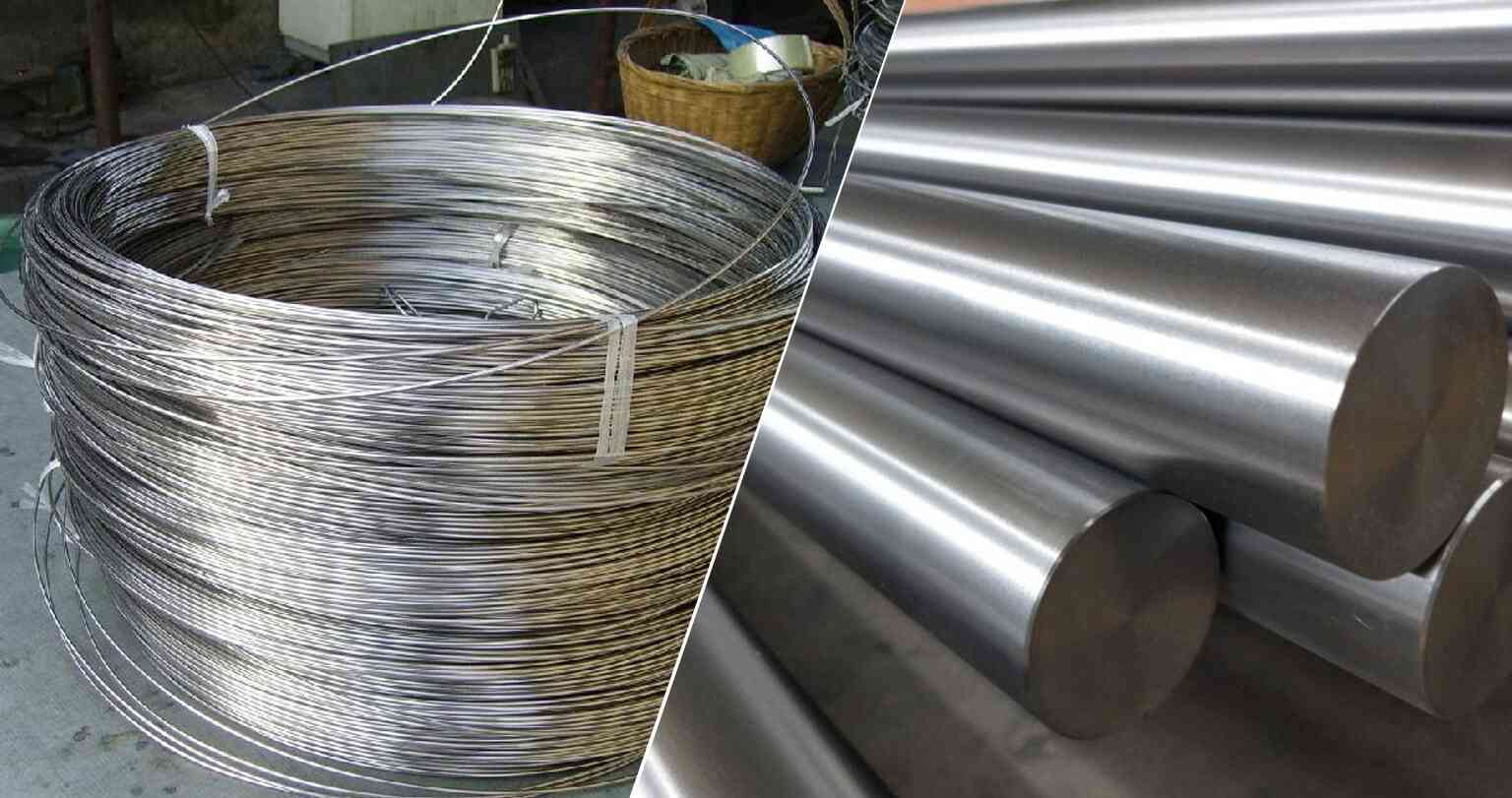

Stainless Steel SS 310 Bars are widely known for its excellent strength and heat resistance. These Bars are durable and corrosion-resistant. It is used in thermal system applications as well as corrosive environments. Our Bars are accessible in several types according to shape and finish. It quickly opts for the best fit to application needs. Variety of length, diameters, and thicknesses are obtained with other specifications along with custom-demand. SS 310 Bars are protected from atmospheric reducing effect by coating and different finishes like Bright Polished, Black, Rough Turned, Matt Finish, BA Finish in round, square, hex, rectangle shapes with the plain and threaded exterior.
SS 310 is a heat-resisting alloy austenitic alloy containing high chromium value with Nickel and adequate Manganese. It is added other stainless steel alloy elements like:
What is SS 310S and SS 310H?
In comparison, SS 310S is low carbon steel improving weldability with prevention of carbide precipitation. In annealed circumstances, it is nonmagnetic, but it can light magnetic appearance on cold working process.
SS 310H is the high carbon alloy implemented for high thermal range applications. It prevents the sulfur dioxide effect and resists heat oxidization increasing creep resistance.
SS 310 Bars are excellent resistant to heat corrosion cracking and provide strength to stabilize at high temperature and cryogenic temperatures. Moreover, It is effectively resistant to high concentration acids and also to hot surroundings. These bars are more brutal than other standard steel grades and support opposition to corrosion and pitting. SS 310S Wire are protected from sensitization and lower carbide precipitation. It is easily formable due to the low carbon content, and excellent weldability is observed. SS 310H Bars are frequently used in sulfur dioxide that reflects oxidization and heat corrosion to reduced effect. Thus resistance against creep erosion is improved.
Furnace parts, Oven linings, Cryogenic structures, Heat Exchangers, Coal gasifier conveyor belts, rollers, fans, and more others like:
|Specifications||ASTM A276, A580 / ASME SA276, SA580|
|Standards||DIN, ASTM, ASME, BS and all International Standards|
|Dimensions||EN, DIN, JIS, ASTM, BS, ASME, AISI|
|Diameter||Outside Diameter in the range of 4mm to 500mm|
|Width||1m to 48″|
|Hex Bars||18mm – 57mm (11/16″ to 2-3/4″)|
|Square Bars||18mm – 47mm (11/16″ to 1-3/4″)|
|Flat Bars||1/2” to 10” in the thickness range of 2mm to 150mm|
|Wire Length||Max 12000 mm|
|Wire Mesh Length||30m to 100″|
|Wire Diameter||5.5 – 400 mm|
|Length||1 to 6 Meters, Custom Cut Lengths|
|Form||Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging, Wire Mesh, Hexagonal Wiremesh, Welding Wiremesh, Netting Wiremesh, Woven Wiremesh, Spring Steel wire mesh, Square Wiremesh Etc|
|SS 310||1.4841||S31000||SUS 310||310S24||20Ch25N20S2||–||X15CrNi25-20|
|SS 310S||1.4845||S31008||SUS 310S||310S16||20Ch23N18||–||X8CrNi25-21|
|SS 310||0.015 max||2.0 max||0.15 max||0.020 max||0.015 max||24.00 – 26.00||0.10 max||19.00 – 21.00||54.7 min|
|SS 310S||0.08 max||2.0 max||1.00 max||0.045 max||0.030 max||24.00 – 26.00||0.75 max||19.00 – 21.00||53.095 min|
|SS 310H||0.04 – 0.10||2.0 max||1.00 max||0.045 max||0.030 max||24.00 – 26.00||–||19.00 – 21.00||53.885 min|
|Density||Melting Point||Tensile Strength||Yield Strength (0.2%Offset)||Elongation|
|7.9 g/cm3||1402 °C (2555 °F)||Psi – 75000 , MPa – 515||Psi – 30000 , MPa – 205||40 %|
