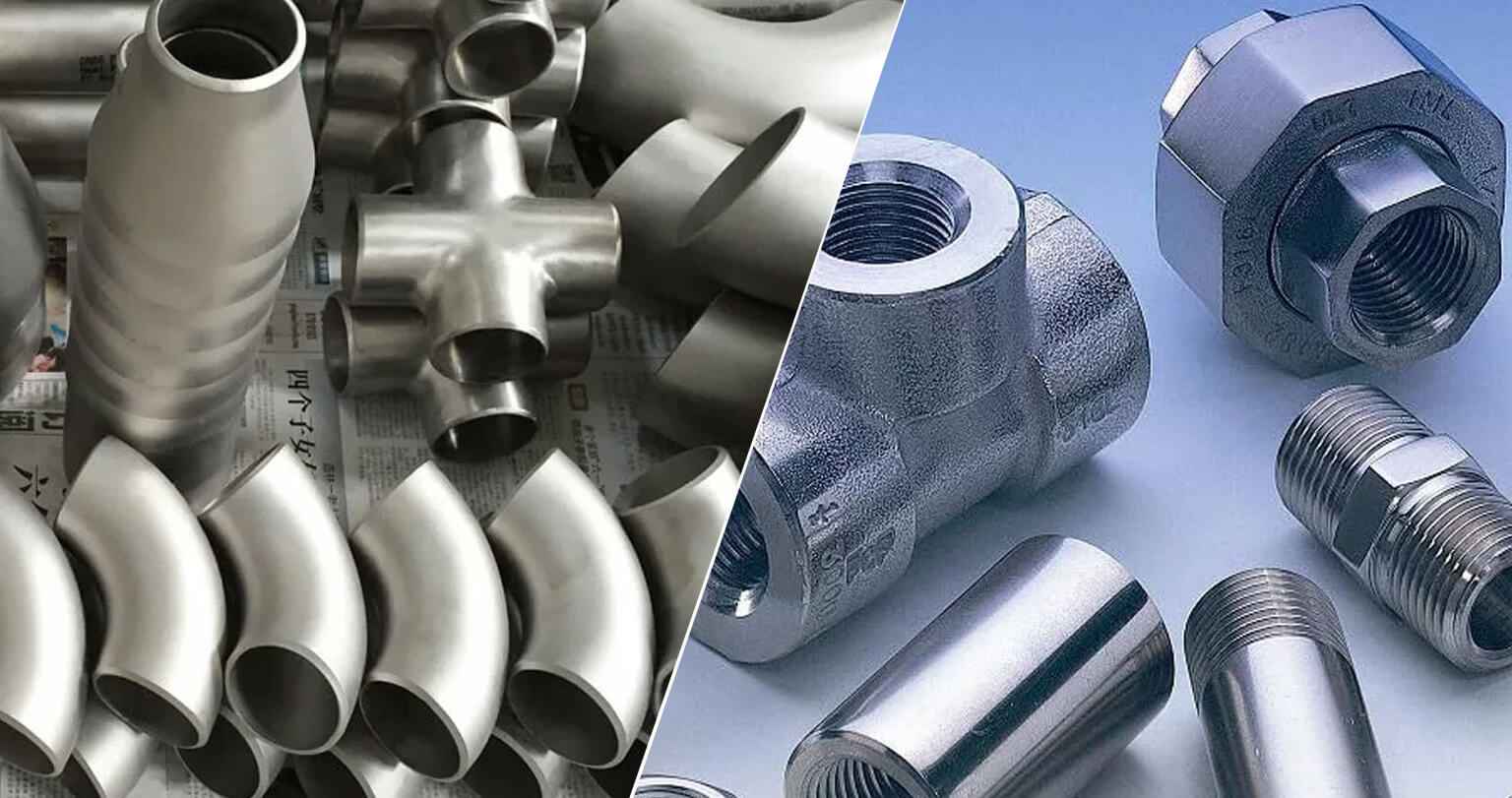

Nickel 200 Fittings. Nickel fittings are the finest option for handling synthetic fiber, caustic alkalis, and food processing. They are pretty fabricable and have outstanding finishing. They are utilized in the manufacture of valves, heat exchangers, nuclear power initiatives, petrochemical facilities, oil and gas machinery, and hydrocarbon processing. They provide resistance to the oxidative and reductive of the environment. In chloride-containing conditions, they are resistant to stress corrosion and crevice corrosion.
Nickel and its related elements and compounds have no characteristics such as odor or taste. Nickel is an element with the atomic symbol N and the number 28, and its weight is 58.69, which are the different attributes of the Nickel material composition. Next, we check the overall characteristics of the used components.
Nickel 200 alloy is more complicated than steel. Nickel 200 Fittings offer excellent resistance to different corrosive and acidic media. These fittings have good electric and thermal conductivities and Magnetostrictive characteristics. This alloy is resistant to alkali, acidic and neutral environments. Nickel 200 alloys show mechanical properties like electrical resistivity, specific heat, young modulus, and density at high temperatures. These fittings offer resistance to stress corrosion cracking. Nickel 201 Fittings with many features, such as long functional life, durability, rugged construction, weldability, ductility, and good dimension accuracy. These products have high corrosion resistance. It has high tensile strength. These fittings are used in various industrial applications because they resist stress corrosion cracking, erosion, abrasion, pitting, and oxidation.
Nickel 200/201 Fittings are used in chemical plants, gas and water pipeline, industrial machinery, and petrochemical refining. Other uses are power generation, thermal, nuclear, and solar power plants. These fittings are also heat resistant. In addition, fittings show good mechanical properties.
The ASTM B564 specification includes Nickel 200 Pipe Fittings. While a chemical study of these nickel alloy fittings is required to ascertain their chemical makeup, the ASTM B564 specification also considers the material’s grain size and mechanical characteristics. Nickel 201 Fittings can be used in producing soap, viscose rayon, and other products. Forged fittings manufactured of alloy 200 exhibit outstanding resistance to the majority of corrosive and acidic atmospheres, alkalis, media, and acids like hydrochloric, hydrofluoric, and sulfuric.
Specifications | ASTM B564 / ASME SA366, ASTM B564 & ASME SA366 |
Forged Fittings Standards | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Buttweld Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Buttweld Fittings Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
Buttweld Fittings Type | Seamless / Welded / Fabricated |
Forged Fittings Type | Socketweld Fittings, Screwed-Threaded Fittings |
Forged Fittings Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Buttweld Fittings Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Buttweld Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
