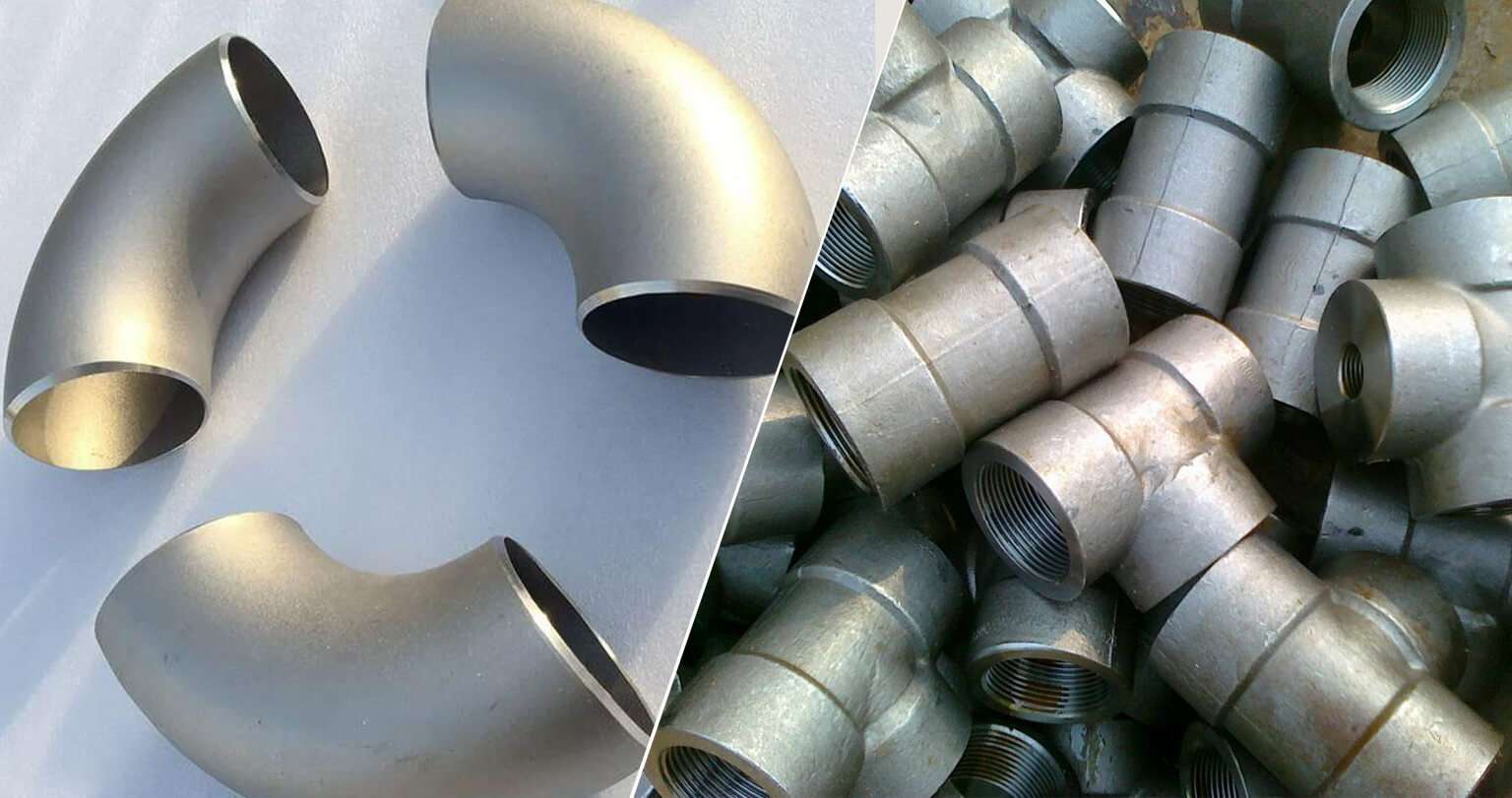

Inconel 718 Fittings. Fittings are very crucial in many machines and industry outlets, but more important is their fitting and quality. A cryogenic temperature of up to 1400 degrees Celsius can be successfully utilized with Inconel 718 Fittings for high strength. The aerospace industry is the main user of Inconel 718 butt weld pipe fittings. The pulp and paper sector as well as offshore oil drilling firms frequently utilise Inconel 718 stub end pipe fittings. Seawater and chemical equipment both employ Inconel 718 Cross Pipe Fittings.
Inconel 718 Alloy is a high-strength, corrosion-resistant nickel chromium material used at high temperatures. Old cemented alloy can be easily produced even in complex parts. Its welding properties are excellent, especially its resistance to cracking after welding. Some other properties of these alloy are high density at the room temperatures, and high melting point. The protective oxide layer gives this Inconel variant significant oxidation resistance, thereby protecting it from corrosion. At each level of production we are performing destructive and non-destructive tests to check efficiency and effectiveness of these Inconel 718 Fittings.
Inconel 718 Elbow Fittings has excellent weldability when compared to the nickel-base alloy hardened by aluminum and titanium. Inconel 718 Tee Fittings combines corrosion resistance and high strength with outstanding weldability, including resistance to post weld cracking. At the same time, these Inconel 718 transition hose fittings are also offered to our customers in various sizes and shapes.
Inconel 718 Fittings have contents that extensively build them solid and robust. Certain alkaline like sodium hydroxide causes a destructive effect on Fittings, but Inconel 718 Fittings can stand tough against them. These Fittings have low carbon content making them safe from carbide accumulation and getting reduced due to carburization. Nickel content in Fittings makes them applicable for marine uses as well. They do not rust in such aqueous solutions. Due to its high nickel content these fittings has excellent resistance to hot corrosion.
|Specifications||ASTM B564 / ASME SA366, ASTM B564 & ASME SA366|
|Forged Fittings Standards||ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799|
|Buttweld Fittings Dimensions||ASME/ANSI B16.9, ASME B16.28, MSS-SP-43|
|Buttweld Fittings Size||1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)|
|Forged Fittings Size||1/8” NB to 4” NB (Socketweld & Screwed-Threaded)|
|Buttweld Fittings Type||Seamless / Welded / Fabricated|
|Forged Fittings Type||Socketweld Fittings, Screwed-Threaded Fittings|
|Forged Fittings Class||2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS|
|Buttweld Fittings Bending Radius||R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom|
|Buttweld Fittings Thickness||Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS|
|Inconel 718||50 – 55||17 – 21||0.3 max||0.08 max||0.35 max||0.015 max||2.8 – 3.3||0.35 max||1.0 max|
|Density||Melting Point||Tensile Strength||Yield Strength (0.2%Offset)||Elongation|
|8.2 g/cm3||1350 °C (2460 °F)||Psi – 135,000 , MPa – 930||Psi – 70,000 , MPa – 482||45 %|
